The Mystery of the BOLD Signal

I've been pretty much bugged about trying to understand the physiological basis of the BOLD signal in fMRI. In a previous post, I sketched an initial attempt to undertsand the vascular changes, mainly in relation to Optical Topography. But then, I realise I don't understand the BOLD response very well, after all...
So here's an update.

MR Basics1
  • Inside the magnet, anything with a magnetic moment will align itself with the big stationary magnetic field (B0), along the z-axis, and all spins will be in phase.
  • A radio-frequency pulse makes a second magnetic axis (e.g.) perpendicular to the main magnet axis, and several molecules/atoms use this as an excuse to spin away from the main axis and into the transverse (x-y) axis.
  • When the RF pulse is turned off, {a} the spins start coming back to their equilibrum position along B0 with a time constant T1, and {b} in the absence of an external driving force, the spins in the x-y plane lose coherence (and so lose a net magnetic moment) with a time constant T2*. (There's also another decay time constant in this transverse field, the T2, which is the decay constant during repeatedly refocusing the phase of the transverse spins).
  • The presence of a paramagnetic substance like deoxy-Hemoglobin (HbR) creates magnetic inhomogeneities, such that the going-out-of-phase in the x-y plane happens much quicker. So, a much smaller signal is produced. Thus, the more the HbR, the smaller the signal. In contrast (heh!) HbO is diamagnetic, and for all magnetic purposes behaves like water, so doesn't contribute much to the (T2*-dependent) BOLD signal.
So far so good.

The basic reason why one would use the BOLD signal is because of certain findings that indicated to Messrs. Roy and Sherrington (1980):
...the existence of an automatic mechanism by which the blood supply of any part of the cerebral tissue is varied in accordance with the activity of the chemical changes which underlie the functional action of that part. Bearing in mind that strong evidence exists of localisation of function in the brain, we are of opinion that an automatic mechanism, of the kind just referred to, is well fitted to provide for a local variation of the blood supply in accordance with local variations of the functional activity.
In short, a neurovascular coupling.
Naively, one would expect the following sequence of events2: a stimulus comes in, the relevant neurons hike up their activity, they require more energy, and so start burning more glucose and turning more HbO into HbR. Therefore, there should be an increase in HbR in the area close to the activity. This means that the BOLD signal should be smaller following stimulation.

Now, other things seem to happen when the stimulus arrives: an increase in the blood-flow rate, and an increase in the blood volume. Again, both of these increase the amount of HbR, and so should decrease the BOLD signal.

BUT, as it happens, over and over again (something like 90% of the studies, according to one source), one finds an increase in the BOLD signal!

Actually, that's not strictly true. There is evidence for an initial "dip" in the BOLD signal, as one would expect3. One possible sequence reconstructed by Malonek et al goes something like this:
  • sensory stimulus
  • blood flow increase
  • as soon as blood flow increases, HbO increases
  • simultaneously with blood flow change, HbR starts to decrease
But then what causes the much larger BOLD signal? Simultaneous recordings of spikes, local field potentials, blood oxymetry and so on favour a view in which the BOLD somehow reflects
"...population synaptic activity (including inhibitory and excitatory activity), with a secondary and potentially more variable connection with cellular action potentials."
In short, not the spikes, but the more widespread synaptic signalling, whether or not it leads to spiking4.

So, one might wonder, how does the big BOLD signal come about?? Clearly, there is much less HbR per unit volume post-stimulation that there was before. How can THAT be? One possibility is that, somehow, the incoming blood is (a) plentiful = large volumes and (b) progressively enriched in HbO.

So, larger quantities of greater HbO-containing blood can both satisfy both the observations - that volume increases and that HbR goes down.

Luckily (for me, at any rate), last year there was a paper in Nature Neuroscience: "Astrocyte-mediated control of cerebral blood flow" by Takano et al. The abstract reads:
Local increase in blood flow during neural activity forms the basis for functional brain imaging, but its mechanism remains poorly defined. Here we show that cortical astrocytes in vivo possess a powerful mechanism for rapid vasodilation. We imaged the activity of astrocytes labeled with the calcium (Ca2+)-sensitive indicator rhod-2 in somatosensory cortex of adult mice. Photolysis of caged Ca2+ in astrocytic endfeet ensheathing the vessel wall was associated with an 18% increase in arterial cross-section area that corresponded to a 37% increase in blood flow. Vasodilation occurred with a latency of only 1–2 s, and both indomethacin and the cyclooxygenase-1 inhibitor SC-560 blocked the photolysis-induced hyperemia. These observations implicate astrocytes in the control of local microcirculation and suggest that one of their physiological roles is to mediate vasodilation in response to increased neural activity.

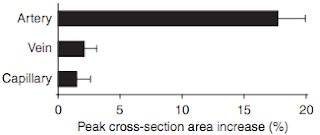

The crème de la crème is the finding that the astrocytes selectively open up the arterial flow! Here's the graph from their paper, showing the relative changes for arteries, veins and capillaries.

This explains both the increased oxygenation of the blood (and so the lower [HbR]) and the larger volume. Add to this the finding from last year that pericytes - cells sitting around the capillaries - can bidirectionally squeeze capillaries, and you might also understand why local blood velocity goes up.

  1. For an excellent online source, look at
  2. See this previous post.
  3. Malonek, D. & Grinvald, A. (1996) Science 272, 551–554
  4. Arthurs, OJ & Boniface, S. (2002) TINS 25(1), 27-31

Labels: , , , ,


Anonymous Anonymous said...

This is a very nice description of the BOLD response. I would just like to highlight, that it has been known for some time that the transient dip in signal is caused by an increase in HgR, but that quickly subsides with increases in blood flow of oxygen rich blood out of proportion to oxygen demand, thus decreasing the relative proportion of HgR and leading to the increase in BOLD T2* signal. It is also known, as you have pointed out, that this hemodynamic response correlates best with local field potentials of neurons. However, is not clear how changes in local field potentials are coupled to blood flow changes. The astrocyte may be playing an important role here, and that was the purpose of the study you site. It was a pleasure to read your entry. Thanks.

November 10, 2009 9:20 AM
